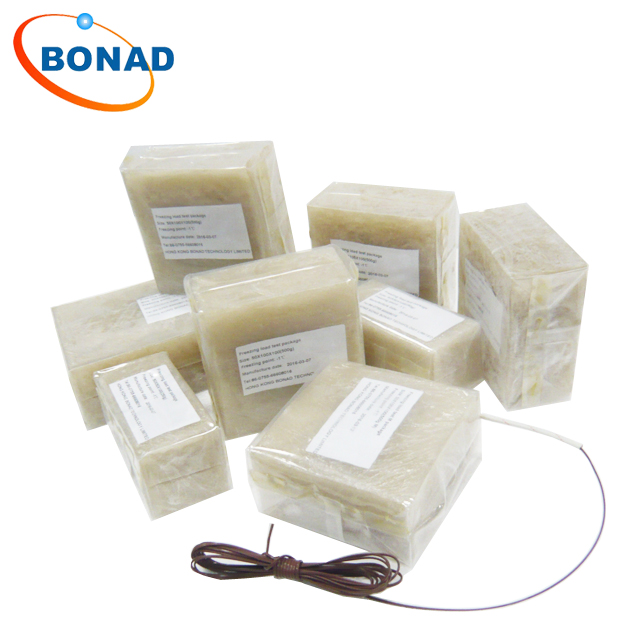

1. The product contains:
It contains the following materials in each 1000g：
- substances container in a percentage over 1%
- 1°C - 5°C
Methylhydroxyethylcellulose(HEMC) 23.0% 23.2%
sodium chloride - 4.3%
Water(H20) 76.42% 72.5%
- substances container in a percentage less than 1%
sodium chloride(NACL) 0.5% -
6-chloro-m-cresol(PCMX) 0.08% 0.08%
The freezing point is -1℃，the thermal property is equivalent to lean beef.
c. Packaging material is a thin layer of plastic or with appropriate materials which can do medium vapor exchange with the environment.
d. M package means the 500g test package, it equipped with a thermocouple in the geometric center to measure the temperature. The thermocouple contact the package directly, also should make the heat conduction on the outside to reduce to the minimum, the length of the thermocouple is 3.5m.
2. Specification：
|
Size (mm)
|
Weight (g)
|
Size Tolerance
|
Weight Tolerance
|
|
25 × 50 × 100
|
125
|
When the Side length size is 25mm to 50mm, tolerance is allowed to be ±
2mm. 100mm to 200mm, ±
3mm.
|
±2%
|
|
50 × 50 × 100
|
250
|
±2%
|
|
25 × 100 × 100
|
250
|
±2%
|
|
25 × 100 × 200
|
500
|
±2%
|
|
50 × 100× 100
|
500
|
±2%
|
|
50 × 100 × 200
|
1000
|
±2%
|
3. The first time after the freezing, the package is not allowed to have the circumstance: swell, bumpy, uneven, deformation, the change of percentage as below ：
|
size
|
the change of percentage
|
|
mm
|
%
|
|
25×50×100
|
±2
|
|
50×50×100
|
|
25×100×100
|
|
25×100×200
|
|
50×100×200
|
