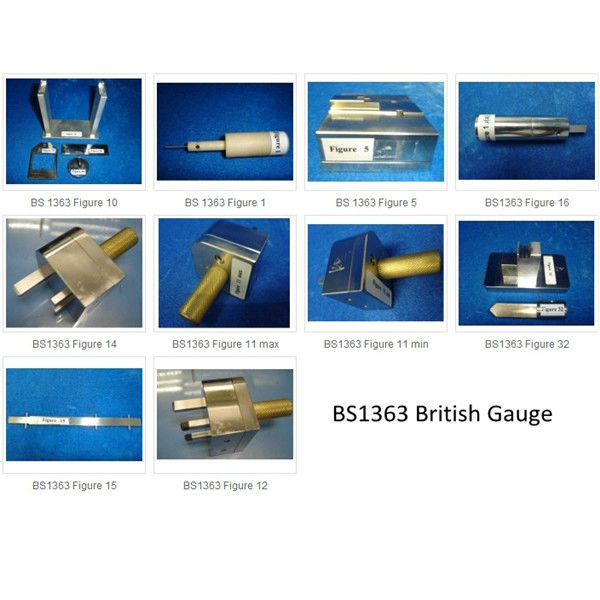

BS1363-1 British Standards Plug and socket Gauges
Name:BS1363-1 British Standards Plug and socket Gauges
Type:BND-BS1363
Manufacturer:We can provide all kinds of gauges and test equipment on BS1363,VDE0620,UL498,EN50075, EN60320, AS/NZS3112,CEI23,IEC61032,IEC60884.SANS164.More details,please contact us.
Product Description:

No.

Product name

standard

Quantity

1

Figure 1 — Test pin

BS1363-1-Fig1

1

2

2a)Apparatus for mechanical strength test on resilient covers                                                  2b)Hardwood block for Figure 2a)

BS1363-1-Fig2

2

3

Figure 4a) — Dimensions and disposition of pins

Figure 4b) — Concave shrinkage allowance for ISOD

BS1363-1-Fig4

2

4

Figure 5 — Gauge for plug pins

BS1363-1-Fig5

1

5

Figure 6 — Apparatus for testing plug cover fixing screw

BS1363-1-Fig6

1

6

Figure 7Mounting plate

BS1363-1-Fig7

1

7

Figure 8Plug pin deflection test apparatus for resilient plugs

BS1363-1-Fig8

1

8

Figure 9— Apparatus for abrasion test on insulating sleeves of plug pins

BS1363-1-Fig9

1

9

Figure 10 — Apparatus for pressure test at high temperature

BS1363-1-Fig10



10

Figure 11 — Go gauge for socket-outlet

BS1363-1-Fig11max/min

2

11

Figure 17a) — Test apparatus for temperature rise test  Figure                                              17b) — Dummy front plate for temperature rise test

BS1363-1-Fig17a.b

2

12

Figure 18 — Apparatus for flexing test

BS1363-1-Fig18

1

13

Figure 19 — Solid link for test on fuse clips

BS1363-1-Fig19

1

14

Figure 20 — Tumbling barre

BS1363-1-Fig20

1

15

Figure 23 — Apparatus for pressure test

BS1363-1-Fig23

1

16

Figure 24 — Apparatus for ball pressure test

BS1363-1-Fig24

1

17

Figure 28 — Calibrated link

BS1363-1-Fig28

1

18

Figure 29 — Calibration jig for calibrated link

BS1363-1-Fig29

1

19

Figure 32 — Apparatus for tests on plug pin

BS1363-1-Fig32

1

20

Figure 33 — Apparatus for torsion test on pins

BS1363-1-Fig33

1
