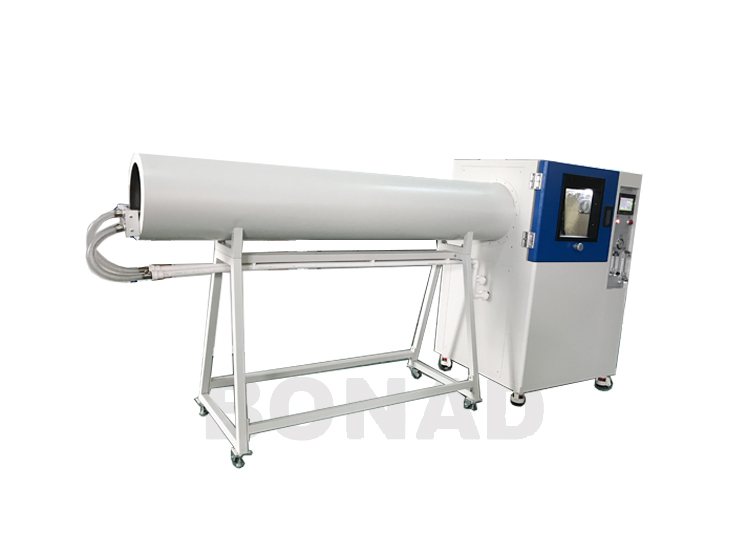

IPX56 Waterproof Strong water jet Test equipment
Model:BND-IPX56BS
Test standard:
In accordance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)".
Equipment use:
The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.
Product Features:
1, split type structure, safe and reliable.
2, Equipment rack and sample turntable are made of high-quality aluminum alloy and SUS304 # stainless steel plate, to ensure long-term use and does not rust
3, turntable electrical part is whole seal, effectively prevent water leakage.
4, the use of speed control motor turntable, the speed in the standard range stepless adjustable, and can control the forward and reverse rotation (with power for the sample test to prevent winding).
5, water flow through the flow meter adjustment, manual adjustment.
6, the nozzle: IEC60529 in accordance with the specifications for the system (below)
|
Model
|
IPX56BS-500L
|
IPX56BS-700L
|
IPX56BS-1400L
|
IPX56BS-1700L
|
IPX56BS-1900L
|
|
Inner size(mm)W*D*H
|
800*800*800
|
900*900*900
|
1180*1180*1000
|
1180*1180*1180
|
1180*1180*1300
|
|
Outer size(mm)W*D*H
|
4000*1050*1600
|
1150*1150*1700
|
4000*1450*1800
|
4000*1450*1850
|
4000*1450*2000
|
|
Turntable diameter(mm)
|
600
|
600
|
800
|
¢800
|
800
|
|
IPX5 diameter(mm)
|
6.3
|
|
IPX6 diameter(mm)
|
12.5
|
|
IPX5 flow(L/min)
|
12.5±0.625
|
|
IPX6 flow(L/min)
|
100±5L/min
|
|
Power(Mpa)
|
According to the provisions of water flow regulation
|
|
spray water distance
|
2.5M
|
|
Pump
|
stainless steel multi-stage pump
|
|
Spray nozzle fixing method
|
machinery fixation
|
|
Water pipe materials
|
Stainless steel+PPR
|
|
Inner box materials
|
SUS304#stainless steel
|
|
Sample table materials
|
SUS304#stainless steel plate
|
|
protector
|
Electric leakage, water-break, cutting-out
|
|
Power supply(V)
|
380V
|
|
Power(KW)
|
3
|
|
Standard
|
IEC60529:1989+A1:1999、GB4208、GB7000.（IPX5、IPX6)
|
|
