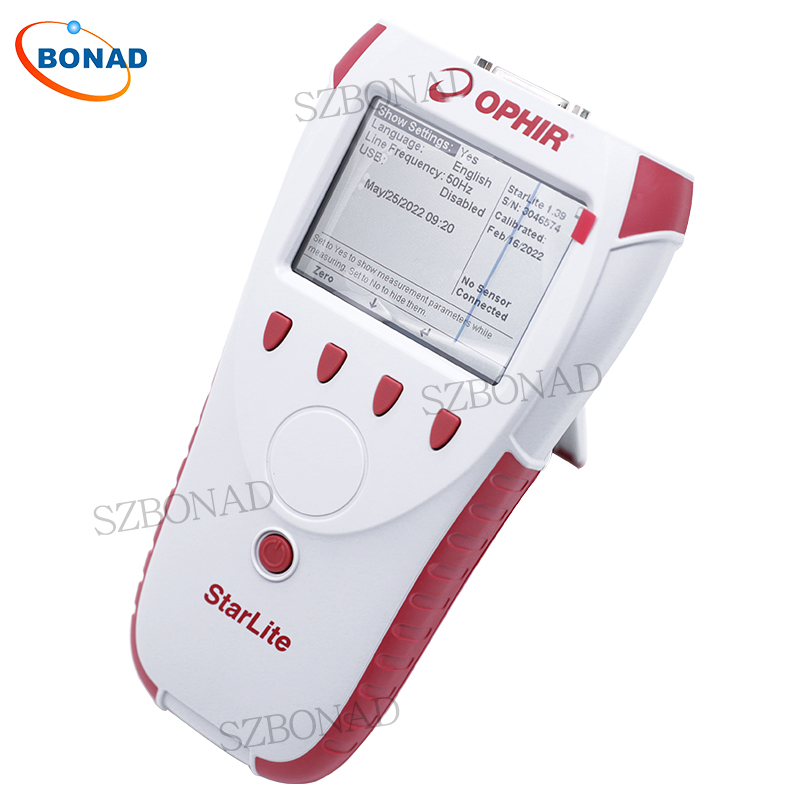

StarLite P/N7Z01565
Low Cost Laser Power / Energy Meter
• Compatible with all standard Ophir Thermal, BeamTrack,
Pyroelectric (PE-C series only) and Photodiode sensors
• Brilliant large size TFT 320x240 display
• Compact handheld design with rubberized bumpers and optimized kickstand
• Choice of digital or analog needle display
• Select between English, Japanese, Russian and Chinese interfaces
• Analog output
• Easy to use soft keys
• Easy measurement configuration with context sensitive help
• Backlighting and rechargeable battery
• Single shot energy measurement with thermal sensors
• Power averaging
• Resizable Screen graphics
• EMI rejection
• Optional software package for USB communication with our StarLab PC suite. For USB options see “Ordering
Information” table in the next page
StarLite is a low cost power / energy meter capable of measuring power or energy from pJ and pW to hundreds of Joules and thousands of Watts. It also supports position and size measurement with the BeamTrack family of sensors. StarLite can also display the power or energy with a high resolution simulated analog needle display
All StarLite measurement screens can be configured to either show the measurement parameters or to hide them in order to maximize the graphical and numeric displays.
StarLite can be operated either by battery or from an AC source with the charger plugged in at all times. Its backlight allows illumination of the power meter in low light conditions
Specifications
Power Meter: High legibility TFT 320 x 240 pixel graphics LCD. Large 16mm digits. High resolution analog needle also can be chosen.
Features: Power, single shot energy, energy and frequency of high rep rate lasers, position, and size.
Outputs: 1V Full Scale analog output.
Screen Refresh: 15 times/sec
Case: Molded high impact plastic with optimized angle kickstand. Rubberized sides for easy grip and protection against damage.
Size: Folds to a compact 211mm L x 114mm W x 40mm H
Battery: Rechargeable Li-ion batteries with typically 8 hours between charges. The charger can be ordered from your local distributor. The changer also functions as an AC adapter.
Sensor Features: Automatic continuous background cancellation with PD300 sensors. Submicrojoule and multikilohertz capability with pulsed energy sensors.
Sensor Compatibility: Works with standard Thermopile, BeamTrack, Photodiode and Pyroelectric (PE-C series) (a) sensors: Works with our PD300RM sensors.
Compliance: CE, UKCA, China RoHS
Note: (a) Not including BC20 and PD300-CIE sensors
|
