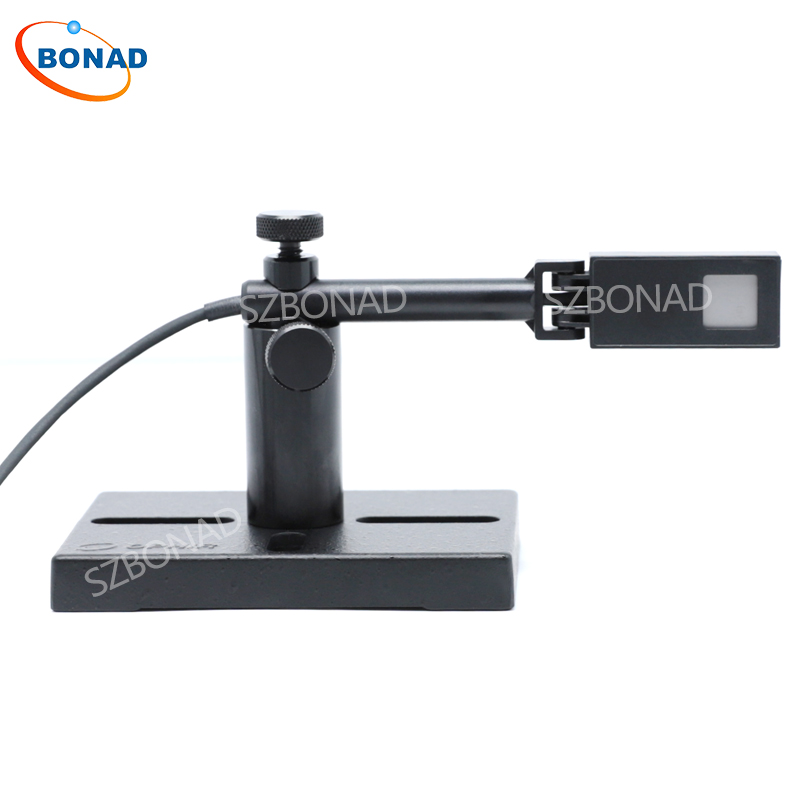

China Supplier of PD300-UV Silicon Photodiode Sensor | Laser Measurement Sensor
Name:China Supplier of PD300-UV Silicon Photodiode Sensor | Laser Measurement Sensor
Type:PD300-UV
Manufacturer:China supplier of the Ophir laser power sensor.The PD300-UV silicon photodiode sensor is a high-quality laser measurement sensor with a 10x10 mm aperture and swivel mount for hard to measure places. Spectral range from 200 to 1100 nm without filter, power range from 20 pW to 3 mW. Removable filter available for spectral range of 220 to 1100 nm and power range of 2 µW to 300 mW.
Product Description:


The PD300-UV silicon photodiode sensor is a wide spectral range laser measurement sensor. It has a 10x10 mm aperture with swivel mount and a removable filter. Without filter, its spectral range is from 200 to 1100 nm and its optical power measuring range is from 20 pW to 3 mW. With filter the spectral range is 220 to 1100 nm and the power range is 2 µW to 300 mW.


  • 200 to 1100 nm silicon photodiode sensor
  • 20 pW to 300 mW power measurement range
  • Swivel mount for hard to measure places
  • Comes with removable filter
  • Fiber optic adapters available


Specifications

  • Aperture Size
    10 x 10 mm
  • Material
    Silicon
  • Spectral Range
    Filter in: 430-1100 nm
    Filter out: 350-1100 nm
  • Power Range
    Filter in: 2 µW - 300 mW
    Filter out: 500 pW - 30 mW
  • Maximum Average Power Density
    Filter in: 50 W/cm²
    Filter out: 10 W/cm²
  • Maximum Pulse Energy
    Filter in: 30 µJ
    Filter out: 3 µJ
  • Response Time
    0.2 s
  • Cable Length
    1.5 m
  • Dimensions
    120 x 13 x 21 mm (LxWxD)
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes
