Juno Power and Energy PC Interfaces in China

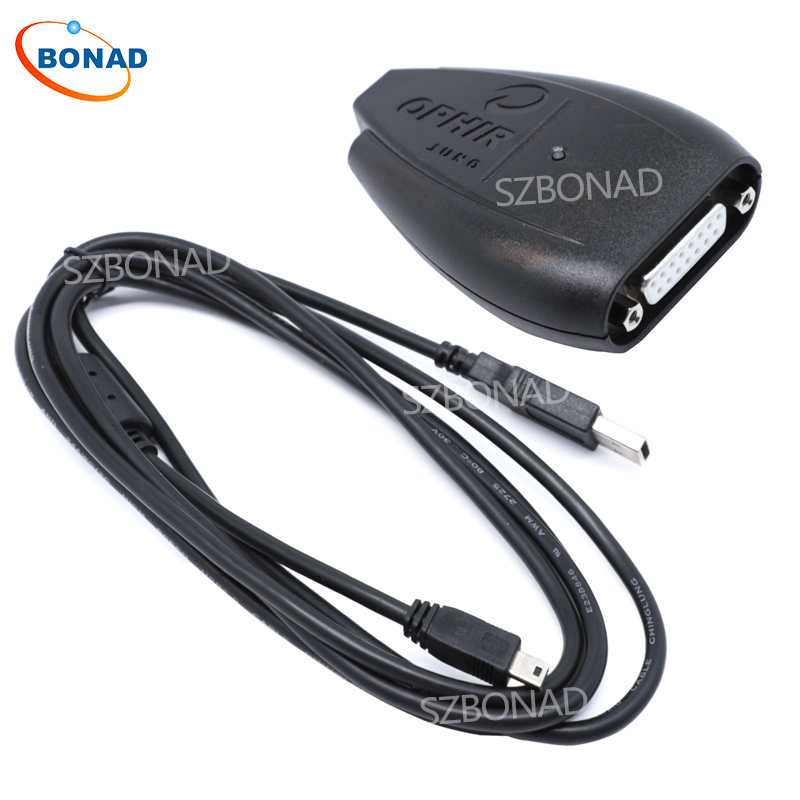

Name:Juno Power and Energy PC Interfaces in China
Type:Juno
Manufacturer:we could provide all kind of Ophir laser power sensor and meter in China,if you have any interest, please contact us freely.Alice@szbonad.com;13380391156
Product Description:

Juno is a compact virtual meter allowing connectivity of Ophir’s smart (DB-15) power and energy sensors to computers (PC, laptops and others) using USB connectivity. It allows remote monitoring and control of the meter via customer custom software, or the Ophir provided PC application.


The Ophir plug-and-play smart sensors are compatible with all standard Ophir power meters. These sensors provide accurate position and size measurements using BeamTrack technology. They can record every energy pulse at a high frequency of up to 10 kHz.

With these smart sensors, you can log power and energy measurements, as well as calculate averages, statistics, histograms, and more. They are particularly useful for pulsed power measurements when used with Thermopile sensors.

To enhance system integration capabilities, the package includes LabVIEW VIs and a COM Object Interface. These tools allow seamless integration into existing systems for data analysis and automation.

Additionally, Ophir offers the StarViewer Android app, which can be downloaded for free. This app transforms your smartphone or tablet into a power meter, providing a convenient and portable solution for on-the-go power measurements.

Whether you require precise power and energy measurements or need to integrate the system into your existing setup, Ophir's plug-and-play smart sensors and associated tools offer reliable solutions for a wide range of applications.

Specifications

  • Thermal Sensor Compatibility
    Yes
  • Photodiode Sensor Compatibility
    Yes
  • Pyroelectric Sensor Compatibility
    Yes
  • BeamTrack Sensor Compatibility
    Yes
  • Statistics
    Yes
  • Analog Out
    No
  • Trigger Input/Output
    No
  • Power Supply
    USB bus powered
  • USB
    Yes
  • Data Transfer Rate
    10,000 Hz
  • On-Board Data Storage
    No
  • Automation Interface
    Yes
  • Labview VI's
    Yes
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes


Meters Juno Juno+ Juno-RS EA-1 Pulsar-1/2/4 Wireless Interface
Quasar
Digital Display N/A N/A N/A N/A N/A N/A
Display Color N/A N/A N/A N/A N/A N/A
Analog Display N/A N/A N/A N/A N/A N/A
Rechargeable Battery Powered from USB Powered from USB 12V 12V or PoE 12V Yes
Detector Support (see compatibility table below)
Thermal Sensors Yes Yes Yes Yes Yes Yes
Photodiode Sensors Yes Yes Yes Yes Yes Yes
Pyroelectric Sensors Yes Yes Yes Yes Yes Yes
BeamTrack Sensors Yes Yes Yes Yes No No
Measurement Options
Average Power Yes Yes Yes Yes Yes Yes
Energy per Pulse (Pyro. Sensors) Yes Yes Yes Yes Yes Yes
Single Shot Energy (Thermal Sensors) Yes Yes Yes Yes Yes Yes
Statistics Yes Yes Yes Yes Yes Yes
Analog Out No 1V, 2V, 5V, 10V 1V, 2V, 5V, 10V No No No
Trigger input & output No No No No Yes No
Real-Time Logging
RS232 N/A N/A 500Hz N/A N/A N/A
GPIB N/A N/A N/A N/A N/A N/A
USB 10,000Hz 10,000Hz N/A N/A 25,000Hz N/A
Bluetooth N/A N/A N/A N/A N/A 500Hz
Ethernet N/A N/A N/A N/A N/A N/A
On-Board Data Storage No No N/A N/A No No
Automation Interface Yes Yes Yes Yes Yes No
Labview VI's Yes Yes No No Yes No
Part number 7Z01250 7Z01252 7Z01254 7Z01240 7Z01203 / 7Z01202 / 7Z01201
