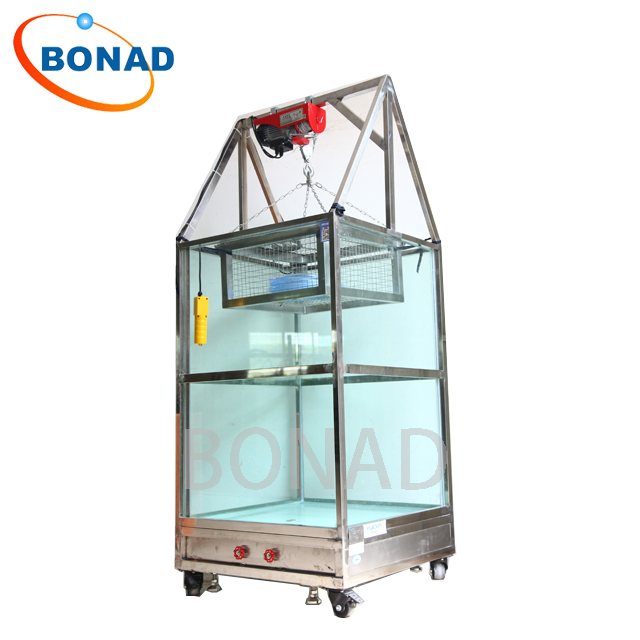

IPX7 Water immersion lifting Test equipment
Model:BND-IPX7AS
|
No.
|
Model
|
BND-IPX7AS-432L
|
BND-IPX7AS-768L
|
BND-IPX7AS-1200L
|
|
1
|
inside the size (mm)
|
600*600*1200 mm
|
800*800*1200 mm
|
1000*1000*1200 mm
|
|
2
|
External dimensions (mm)
|
660*660*1400 mm
|
860*860*1400 mm
|
1060*1060*1400 mm
|
|
3
|
Tempered glass thickness (mm)
|
12
|
12
|
15
|
|
4
|
test the maximum depth (m)
|
1.2m
|
|
5
|
water level adjustment
|
manually adjust
|
|
6
|
Water level display
|
Stainless steel ruler Visual (number of display 1mm)
|
|
7
|
frame material
|
stainless steel side pass
|
|
8
|
standards
|
IEC60529:1989+A1:1999、GB4208、GB7000.（IPX7)
|
1. Install an electric lifting device (loading 300KG) above the chassis to place a large number of test samples.
2, stainless steel sample basket, the skeleton is made of stainless steel square pass, and the surrounding and bottom are made of stainless steel mesh.

|
