IPX7 Waterproof Test chamber with lift

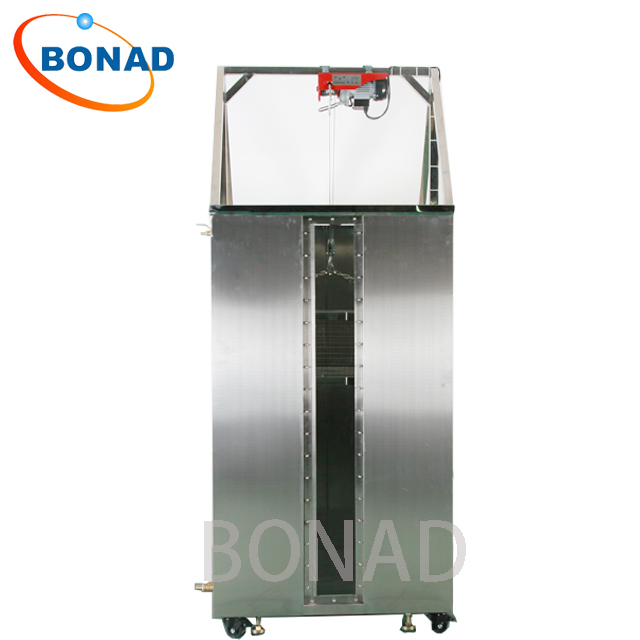

Name:IPX7 Waterproof Test chamber with lift
Type:BND-IPX7BS
Manufacturer:1. Install an electric lifting device (loading 300KG) above the chassis to place a large number of test samples. 2, stainless steel sample basket, the skeleton is made of stainless steel square pass, and the surrounding and bottom are made of stainless steel mesh.
Product Description:

IPX7 Waterproof Test chamber with lift


Model:BND-IPX7BS

Materal: steel stainless


Technology parameter :

No.

Model

BND-IPX7BS-108L

BND-IPX7BS-432L

BND-IPX7BS-960L

BND-IPX7BS-1200L

BND-IPX7BS-1728L

1

Inner size(mm)

300*300*1200

600*600*1200

1000*800*1200

1000*1000*1200

1200*1200*1200

2

outer size(mm)

360*360*1300

660*660*1300

1080*880*1300

1080*1080*1300

1280*1280*1300

3

Thickness of plate

1.5mm

1.5mm

1.5mm

2mm

2mm

4

highest water depth

1.2m

5

Water adjustment

Manual adjustment

6

Water level display

Stainless steel rulershow several degree 1mm

7

Tank material

Stainless steel

8

Standard

IEC60529:1989+A1:1999GB4208GB7000.IPX7)

1. Install an electric lifting device (loading 300KG) above the chassis to place a large number of test samples.

2, stainless steel sample basket, the skeleton is made of stainless steel square pass, and the surrounding and bottom are made of stainless steel mesh.
