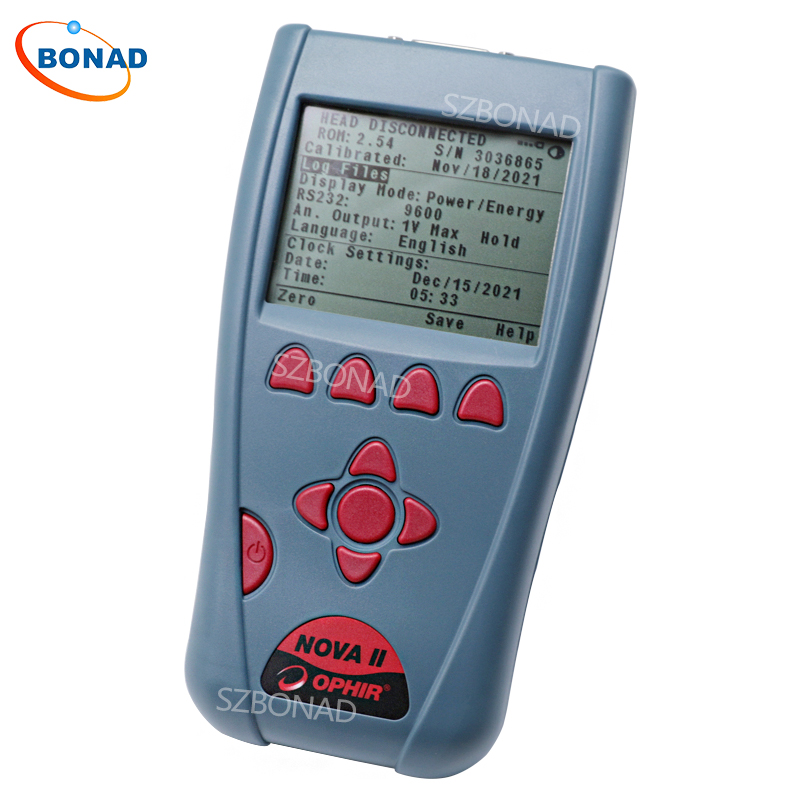

Nova IIP/N7Z01550
Handheld Laser Power & Energy Meter
Description:
• Try Out Nova II Online Demo
• Compatible with all standard Ophir Thermopile, BeamTrack, Pyroelectric and Photodiode sensors.
• Large, high definition LCD display.
• Both digital and analog needle display.
• USB and RS232 output to PC with Statistics package.
• Select between English and Japanese interfaces
• Analog output.
• Soft keys and menu driven functions with on line help.
• Log every data point at up to 4000Hz with pyroelectric sensors.
• Non-volatile data storage up to 59,400 points.
• Laser tuning screen and power log.
• 2 position kickstand.
• System Integrator Tools included: LabVIEW VIs, COM Object Interface.
Specification:
Display: High legibility 320 x 240 pixel graphics LCD with switchable electroluminescent backlight. Large 18mm digits. High resolution analog needle also can be chosen.
Features: Many screen features including power with bar graph, energy, average, exposure, frequency, graphs, scaling, special units, and more. Complete on line context sensitive help screens. Outputs USB, RS232 and 1, 2, 5 and 10 volt full scale analog output
Screen Refresh: 15 times/sec Case: Molded high impact plastic with two level kickstand.
Size: Folds to a compact 208mm Lx 117mm Wx 40mm H
Battery: Rechargeable NiMH batteries with typically 18 hours between charges. Charger (included) also functions as an AC adapter. Data handling Both USB communications with data transmission rate of >1000 points/s and RS232 with 19200 baud rate. Non volatile on board storage of up to 54000 data points in up to 10 files. Data can be viewed on board or transmitted to PC.
Head features: Works with thermopile, pyroelectric and photodiode heads. Automatic continuous background cancellation with PD300 heads. Submicrojoule and multikilohertz capability with pyroelectric heads.
Program features: Preferred startup configuration can be set by user. User can recalibrate power, energy, response time and zero offset.
|
