Vega P/N 7Z01560

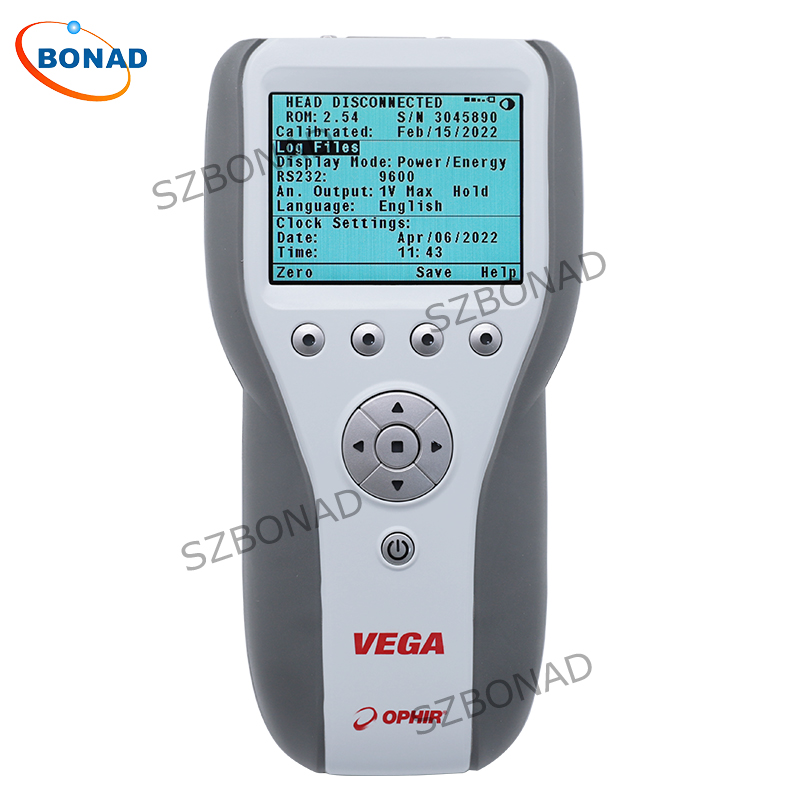

Ophir Vega Color Screen Handheld Laser Power & Energy Meter
Description:
• Compatible with all standard Ophir Thermopile, BeamTrack, Pyroelectric and Photodiode sensors
• Brilliant color large size TFT 320x240 display
• Clear screen color for work with laser safety goggles
• Illuminated keys for working in the dark
• Both digital and analog needle display
• USB and RS232 output to PC with Statistics package
• Select between English and Japanese interfaces
• Analog output
• Soft keys and menu driven functions with on line help
• Log every data point at up to 4000Hz with pyroelectric sensors
• Non-volatile data storage up to 250,000 points
• Laser tuning screen and power log

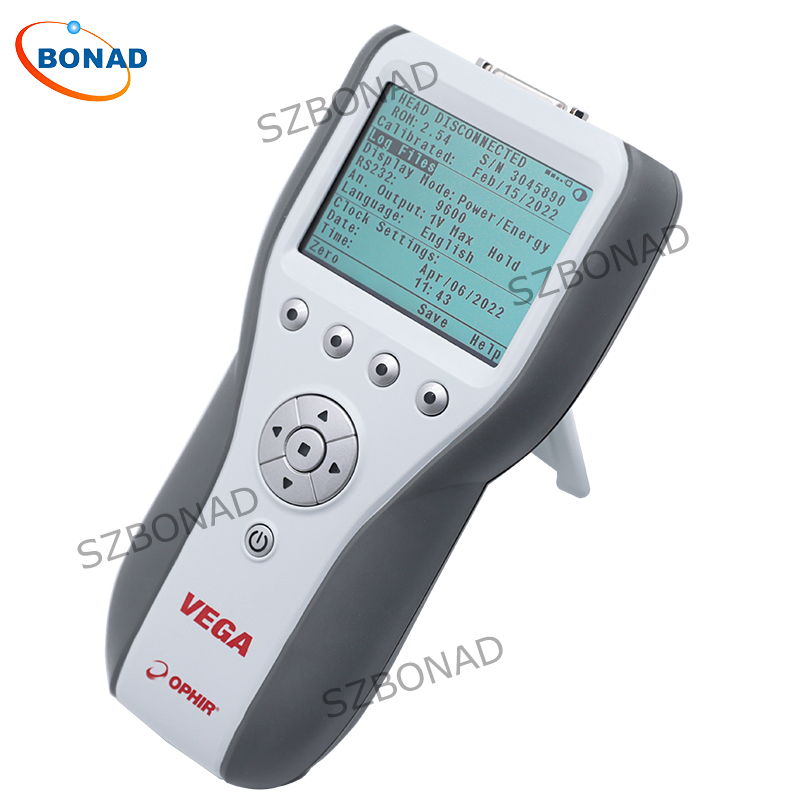

• 2 position kickstand
• System Integrator Tools included: LabVIEW VIs, COM Object Interface
The Vega is a very versatile and sophisticated handheld laser power/energy meter. Just plug in one of the many Ophir sensors and you have a whole measurement laboratory at your fingertips. The bright color display gives unparalleled legibility and ease of interpreting information. The Vega has many on board features such as laser tuning, data logging, graphing, normalize, power or energy density units, attenuation scaling, max and min limits. The Vega can also display the power or energy with a high resolution simulated
analog needle display. The Vega can be operated either by battery or from an AC source with the charger plugged in at all times. Its bright display and backlit keys allow easy use in dark room conditions or with laser glasses on. The built-in USB and RS232 interfaces and starLab and StarCom PC software allow on-line processing of data or processing previously stored data; results are displayed graphically on a PC. To support PC interfacing, LabVIEW drivers and COM Object Interface are provided.
Specifications
Power Meter: Brilliant color TFT 320 x 240 pixel graphics LCD. Large 16mm digits. High resolution analog needle also can be chosen.
Features: Many screen features including power with multicolor bar graph, energy, average, exposure, frequency, graphs, scaling, special units, and more. Complete on line context sensitive help screens.
Outputs: USB, RS232 and user selectable 1, 2, 5 and 10 Volt full scale analog output.
Screen Refresh： 15 times/sec
Case： Molded high impact plastic with
optimized angle two level kickstand.
Rubberized sides for easy grip and protection against damage.
Size： Folds to a compact 210mm L x 109mm W x 36mm H
Battery: Rechargeable NiMH batteries with typically 18 hours between charges. The charger can be ordered from your local distributor.
The charger also functions as an AC adapter.
Data Handling: Data can be viewed on board or transmitted to pc:
On Board: Non-volatile storage of up to 250,000 data points in up to 10 files.
Max onboard data logging rate 4000 (a) points/s and Max data logging rate to the PC 2000 (a) points/s.
Sensor Features: Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors (b).
Program Features: Preferred start up configuration can be set by user. User can recalibrate power, energy, response time and zero offset.
Compliance: CE, UKCA, China RoHS
Note: (a) The above refers to the rate of logging every single point in turbo mode. Above that rate, the instrument will sample points but not log every single point
Note: (b) Not including PD300RM sensors
|
