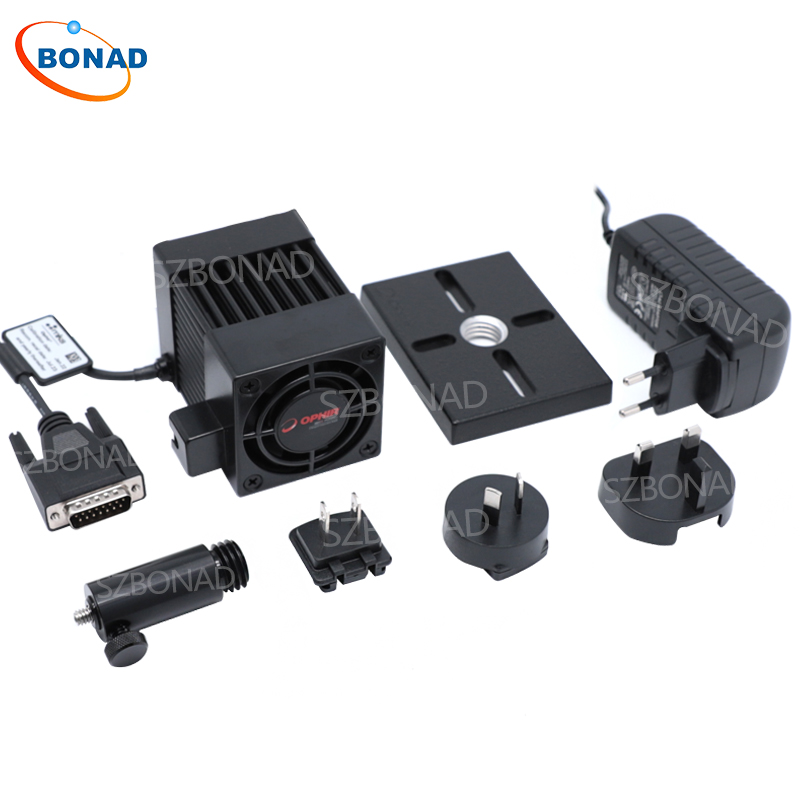

The F150A-BB-26 is a general purpose fan cooled thermal power/energy laser measurement sensor. It features a 26 mm aperture and is equipped with a fan cooling system. This sensor is capable of measuring power levels ranging from 50 mW to 150 W and energy levels from 20 mJ to 100 J. Its broadband coating ensures spectral flatness and it operates effectively within the spectral range of 0.19 to 11 µm.

Key features include:

• Broadband absorber covering wavelengths from 0.19 to 11 µm
• Fan-cooled design suitable for average power measurements between 50 mW and 150 W
• Capable of measuring pulse energies from 20 mJ to 100 J

Product Name	F150A-BB-26
Use	General purpose
Absorber Type	BB - Broadband
Aperture Size	Ø26 mm
Power Mode
Spectral Range	0.19 - 11 µm
Minimum Power	50 mW(d)
Maximum Average Power	150 W(d)
Power Noise Level	3mW (d)
Minimum Pulse Energy	20 mJ(d)
Maximum Pulse Energy	100 J
Response Time	1.5 s
Maximum Average Power Density	12 kW/cm²
Maximum Energy Density <100 ns	0.3 J/cm²
Maximum Energy Density 2 ms	10 J/cm²
Calibration Uncertainty	±1.9%
Power Accuracy	±3%
Linearity with Power	±1%
Cooling	Fan

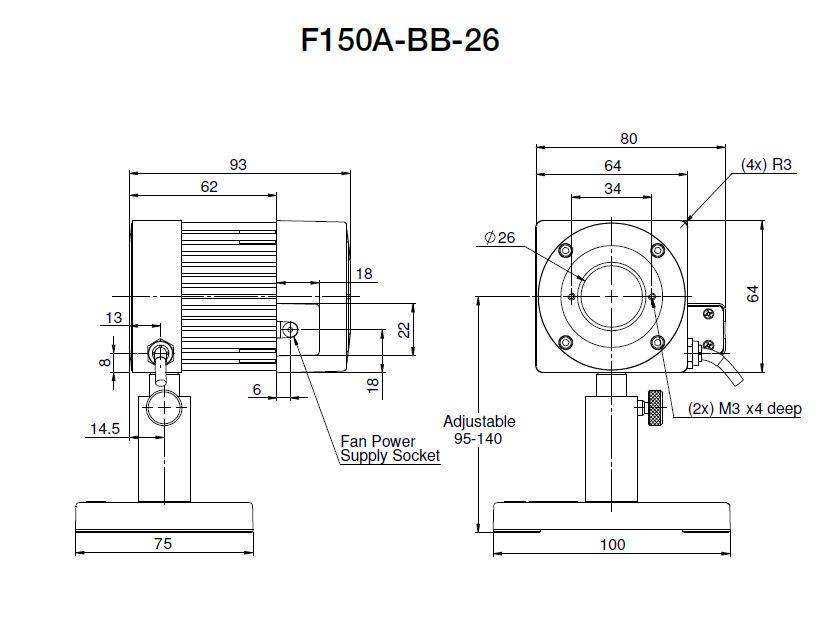

Dimensions	64 x 64 x 93 mm (LxWxD)
Cable Length	1.5 m
CE Compliance	Yes
UKCA Compliance	Yes
China RoHS Compliance	Yes
Part number	7Z02727

Notes:
(a) Fan should be on for power above 3W. Fan should be off for measuring very low power and for energy measurement.
(b) For shorter wavelengths derate maximum energy density as follows:
Wavelength Derate to value:
1064nm not derated
532nm 80% of stated value
355nm 60% of stated value
266nm 40% of stated value
193nm NA
(c) Calibrated at specified wavelengths only: 266nm, 355nm, 532nm, 1064nm and 2100nm only
(d) For lower powers up to 30W it is recommended to work with the fan off and then the noise level is ~3 times lower. It is also recommended to measure energy with the fan off.
