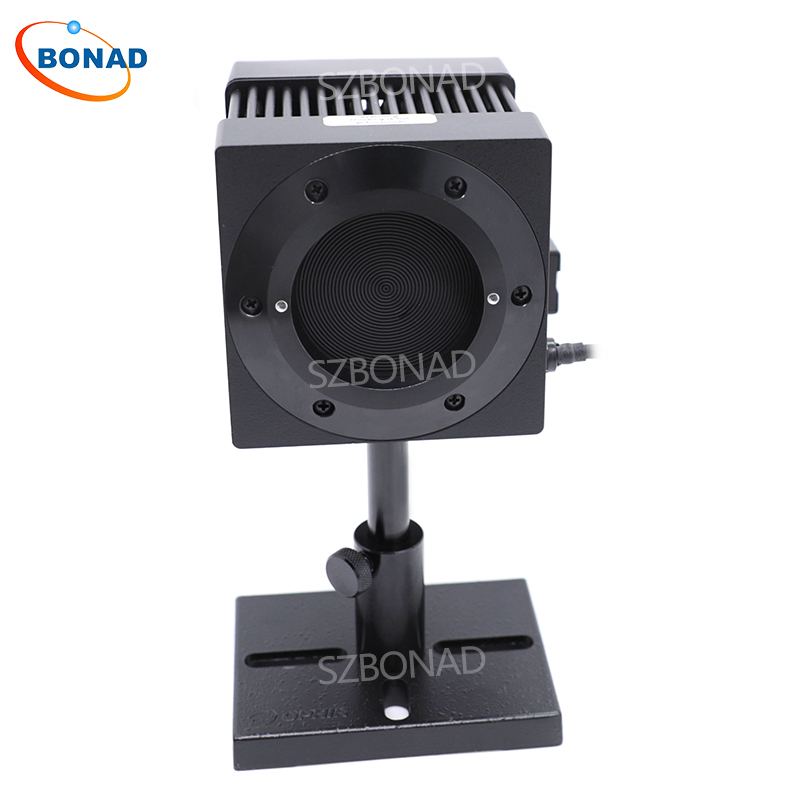

China supplier FL400A-LP2-50 Ohpir Fan-Cooled thermopile sensor
Name:China supplier FL400A-LP2-50 Ohpir Fan-Cooled thermopile sensor
Type:FL400A-LP2-50
Manufacturer:The FL400A-LP2-50 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 100mW to 400W continuously and to 500W intermittently.
Product Description:

Ohpir FL400A-LP2-50 400 W Fan-Cooled thermopile sensorwith 50 mm Aperture|China supplier


The FL400A-LP2-50 thermopile sensor is a fan cooled laser power and energy thermal sensor for high power density and long pulse lasers. It has a 50 mm aperture and can measure optical power from 100 mW to 400 W continuously and to 500 W intermittently. It can measure energy from 250 mJ to 600 J. Its high damage threshold LP2 coating covers the spectral range 350 to 2200 nm and 10.6 µm.


  • LP2 type 350 to 2200 nm absorber for long pulse lasers
  • Fan-cooled 0.1-400 W continuous power measurement
  • 250 mJ to 600 J pulse energy measurement
  • 500 W power measurement intermittently

Specification of the FL400A-LP2-50 thermopile sensor:

Model

FL400A-LP2-50

Use

High power densities and long pulses

Absorber Type

LP2

Spectral Range

0.35 - 2.2µm, 10.6µm (b)

Absorption

>96% from 0.35 to 1.1μm,
75% for 10.6μm

Aperture

Ø50mm

Power Mode

Power Range (a)

100mW - 500W

Maximum Intermittent Power

500W for 1 min,
400W continuous

Power Scales

500W / 50W

Power Noise Level (a)

15mW

Maximum Average Power Density

10kW/cm2 at 400W

20kW/cm2 at 150W

Response Time with Meter (0-95%) typ.

4s

Calibration Uncertainty

±1.9%

Power Accuracy

±3% (b)

Linearity with Power

±1.5%

Energy Mode

Energy Range

250mJ - 600J

Energy Scales

600J / 60J / 6J

Minimum Energy (a)

250 mJ

Maximum Energy Density J/cm2

<100ns

0.07

1µs

0.6

0.5ms

35

2ms

90

10ms

270

Cooling

fan

Fiber Adapters Available

ST, FC, SMA, SC

Weight

0.9kg

Part number: Standard Sensor

7Z02778


The related Models of the Ohpir Fan-Cooled thermopile sensor:

Model

FL400A-LP2-50

FL400A-BB-50

FL250A-BB-50

Use

High power densities and long pulses

General purpose

General purpose

Absorber Type

LP2

Broadband

Broadband

Spectral Range

0.35 - 2.2µm, 10.6µm (b)

0.19-20µm (b)

0.19-11µm (b)

Absorption

>96% from 0.35 to 1.1μm,
75% for 10.6μm

~88% from

~88% from

Aperture

Ø50mm

Ø50mm

Ø50mm

Power Mode

Power Range (a)

100mW - 500W

300mW - 500W

150mW - 250W

Maximum Intermittent Power

500W for 1 min,
400W continuous

500W for 1 min,
400W continuous

NA

Power Scales

500W / 50W

500W / 50W

250W / 30W

Power Noise Level (a)

15mW

40mW

40mW

Maximum Average Power Density

10kW/cm2 at 400W

8.5kW/cm2 at 400W

10kW/cm2 at 250W

20kW/cm2 at 150W

12kW/cm2 at 150W

12kW/cm2 at 150W

Response Time with Meter (0-95%) typ.

4s

4s

2.5s

Calibration Uncertainty

±1.9%

±1.9%

±1.9%

Power Accuracy

±3% (b)

±3% (b)

±3% (c)

Linearity with Power

±1.5%

±1.5%

±1%

Energy Mode

Energy Range

250mJ - 600J

75mJ - 600J

80mJ - 300J

Energy Scales

600J / 60J / 6J

600J / 60J / 6J

300J / 30J / 3J

Minimum Energy (a)

250 mJ

75 mJ

80 mJ

Maximum Energy Density J/cm2

<100ns

0.07

0.3

0.3

1µs

0.6

0.4

0.4

0.5ms

35

5

5

2ms

90

10

10

10ms

270

30

30

Cooling

fan

fan

fan

Fiber Adapters Available

ST, FC, SMA, SC

ST, FC, SMA, SC

ST, FC, SMA, SC

Weight

0.9kg

0.9kg

0.8kg
